Feeding
the pig..... The number one problem you will probably experience with the LImited custom, are rounds which tend to feed into the top of the chamber or slide. This can be easily fixed, and once it's running smooth, the L.C. just loves to go through that ammo..
| ||

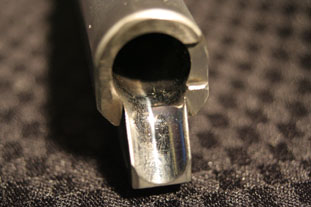

| Feed Ramp | ||
Most
feed ramps have a have decent polish on them, but I find the 10 minutes
with a Dremel, and you get a way better shine, and flatter surface.
It's way easier to clean as well! Just use the bullet shaped felt
tip you get with the Dremels. |
||
| Slide gets caught on follower | ||
| If your magazines are not tuned properly, the magazine follower will
travel to far, and it will get hit by the bottom of the slide. (See first pic). This can be fixed two ways. The first way to to adjust the spring tension on the follower and remove the extra bend that is added by the factory. The second thing is that the bottom edge of the slide needs to be filed to put a very small bevel on it   you can see the slide taking a gouge out of the follower   Get rid of the Bend and add a slight bevel |
||
| Tuning the Magazines | ||
| The biggest problem, and the majority of
problems you will find are magazine related. I found that out of the box, all 10 of the mags I had needed
to be tuned. Know Thy Enemy!! Here is a picture of the new and old magazine styles. While the new style seems to be more prone to the lips spreading, the follower, and spring still needs to be tuned.  Here is a list of want needs to be done to keep the magazines functioning smoothly. 1. Adjust the feed angle/lip spread After a while you will find the lips will start apart, and rounds will feed high, and into the top of the chamber, or the slide. I have found the optimal distance between the two lips to be 0.380 - 0.385 inches. You can see in the picture below, the difference between a 0.385 and 0.395
2. Magazines Fall Out You need to gently bend out the upper lip of the hole which is engaged by the magazine release.
|
||
